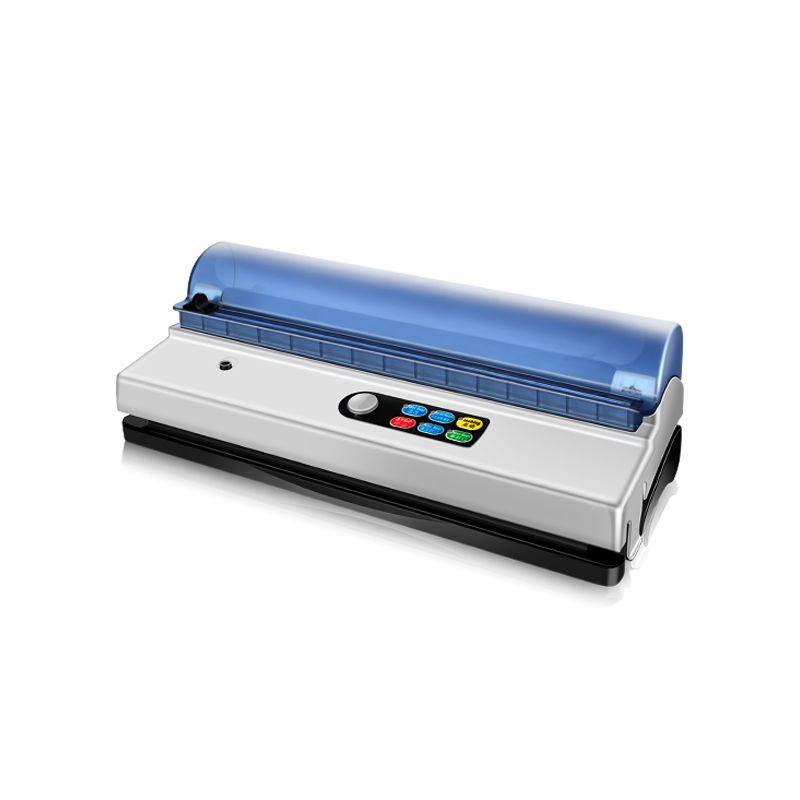

Vacuum Sealer, 150W, 32cm Seal, Marination & Inching
The UAHFW20 is a vacuum sealer with a 150W motor, 32cm sealing width, 80kPa suction plus marination and inching modes. Manufactured in China with a minimum order of 1 pieces — request a factory-direct quote for current tier pricing and lead time.
Features
Operation Type
Button
Controllable Vacuum Degree Mode
Modes
Intelligent Vacuum Mode Selection, Start/Pause, Vac & Seal, Dry Seal, Marination, Inching, Wet Seal
Double Hand Press Lock
Soft Vacuum
Detachable Drip Tray and Upper Part Roll Storage Compartment with Blade Cutter
Five Layered Heating Strip
Equipped with Filtered Liquid Extraction Container
Sixth Generation Upgraded Vacuum Chamber
Extended Automatic Suction Nozzle for smooth bags
Universal Vacuum Bag Sealings
Specifications
| Product Model | UAHFW20 |
|---|---|
| Material | ABS |
| Accessories | Vacuum Bag Roll, Flat Vacuum Bags, External Suction Tube, Cord |
| Power | 150W |
| Voltage | 100-220V (50-60Hz) |
| Motor Rated Voltage | DC 15V |
| Sealing Width | 32 cm |
| Sealing Heating Strip Width | 3 mm |
| Suction | 80kPa |
| Flow Rate | 12L/min±15% |
Packaging
| Net weight | 1.45 kg |
|---|---|
| Gross weight | 1.85 kg |
| Product size | 385x155x125 mm |
| Packaging size | 430x198x190 mm |
| Qty per carton | 4 |
| Carton gross weight | 9 kg |
| Carton size | 447x410x402 mm |
| CBM per carton | 0.07367454 |
| 20ft container qty | 1520 |
| 40ft container qty | 3148 |
| 40HQ container qty | 3688 |
| MOQ (standard) | 500 |
| MOQ (custom) | 500 |
Frequently Asked Questions
What are the key specs of this vacuum sealer?
The UAHFW20 uses a 150W motor at 100-220V, with 80kPa suction and a 12L/min flow rate. It provides a 32cm sealing width and a 3mm heating strip, with button operation and a controllable vacuum-degree mode. Modes include intelligent vacuum selection, Vac & Seal, Dry Seal, Wet Seal, Marination and Inching.
What are the marination and inching modes for?
The marination mode cycles vacuum pressure to help liquids penetrate foods faster, while inching gives short, manual vacuum bursts for precise control over delicate items. The UAHFW20 also includes upper roll storage with a blade cutter, soft vacuum, a five-layered heating strip and a filtered liquid extraction container.
Do you offer OEM, ODM or private-label production?
Yes. We are a China-based manufacturer providing OEM, ODM and private-label services, including custom logos, colors, packaging and accessory bundles. Buyer-supplied branding and retail-ready boxes are supported. Send your specification and target market, and our team will prepare samples and a tailored production proposal.
What is the MOQ, lead time and warranty?
The minimum order quantity can be as low as 1 unit for sampling, with standard wholesale runs scaled to your needs. Production lead times are typically 15-30 days depending on volume and customization. We quote FOB China with EXW and CIF options, accept 30/70 T/T, and provide a 12-month warranty against manufacturing defects.
